PYRO - A 3000
PYRO - A 3000 (spontaneous ventilation equipment – spot equipment)
The fire damper PYRO - A 3000 is made from the dome rooflight with a reinforced construction and opening mechanism. Alternatively, as in the dome rooflights, a single, double or triple dome can be used and the sleeve heights are 300 and 500 mm.
Basic dimensional line
Dimension B (cm) hole in the roof |
geometrical input area Av (m2) |
open aerodynamical area Aa (m2) |
open aerodynamical area Aa (m2) with the spoiler |
---|---|---|---|
100 × 100 | 1,00 | 0,627 | 0,720 |
100 × 150 | 1,50 | 0,989 | 1,082 |
100 × 200 | 2,00 | 1,320 | 1,414 |
100 × 240 | 2,40 | 1,584 | 1,673 |
100 × 250 | 2,50 | 1,653 | 1,740 |
100 × 300 | 3,00 | 1,983 | 2,091 |
120 × 120 | 1,44 | 0,949 | 1,043 |
120 × 150 | 1,80 | 1,188 | 1,282 |
120 × 180 | 2,16 | 1,428 | 1,521 |
120 × 220 | 2,64 | 1,745 | 1,837 |
120 × 240 | 2,88 | 1,904 | 1,993 |
120 × 250 | 3,00 | 1,983 | 2,076 |
120 × 270 | 3,24 | 2,142 | 2,236 |
150 × 150 | 2,25 | 1,487 | 1,579 |
150 × 180 | 2,70 | 1,785 | 1,879 |
150 × 210 | 3,15 | 2,085 | 2,180 |
150 × 240 | 3,60 | 2,383 | 2,477 |
150 × 250 | 3,75 | 2,483 | 2,576 |
150 × 270 | 4,05 | 2,681 | 2,782 |
180 × 180 | 3,24 | 2,145 | 2,239 |
180 × 240 | 4,32 | 2,864 | 2,959 |
180 × 250 | 4,50 | 2,984 | 3,078 |
180 × 270 | 4,86 | 3,222 | 3,315 |
200 × 200 | 4,00 | 2,652 | 2,744 |

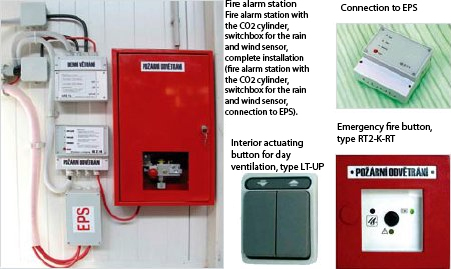

PYRO A 3000/CO2 - PNEUMATICALLY CONTROLLED
The spontaneous venting equipment opens automatically by burning the thermal fuse if the temperature exceeds 68°C or 93°C, manually by striking a lever in the control room or by a signal from EPS. In the event of fire, the equipment opens by means of a pneumatic piston and CO2 cylinder. The opening and blocking angle in the end position is 165° or 105°. A 230 V electric motor can be added for the function of day ventilation that will be disconnected in the event of fire activation.

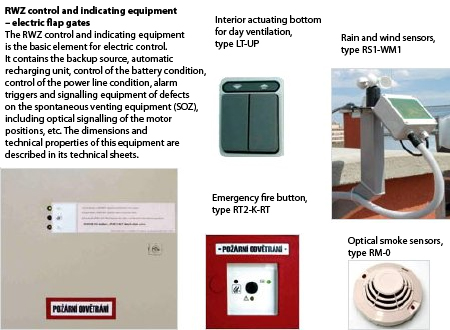

PYRO A 3000/EL - actuated electrically
